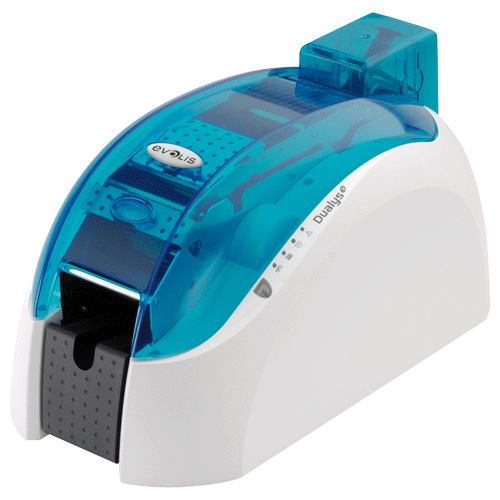

Durable Mono or Colour Double-sided Card Printer
-
High Resolution 300 Dpi Print head
-
Detachable card feeder with 100 card capacity
-
Output hopper with 50 card capacity
-
Integrated ribbon saver for Monochrome Printing
-
Enhanced Colour management
-
Edge to edge printing
-
16 MB of RAM
-
Standard USB Interface
-
Optional internal Ethernet interface
-
Optional MSR encoder
|
Cards |
CPCEC4001 |
0.76mm plain white PVC card |
|
CPCEC4003 |
HiCo plain white Magnetic Stripe cards |
|
|
CPCEC4001S |
0.76mm plain white PVC card with Signature Strip |
|
|
Ribbons |
CPRER3011 |
YMCKO Colour Ribbon, Yield 200 Cards/Ribbon single side |
|
CPRER2011 |
Black Mono Ribbon, Yield 1000 Cards/Ribbon Single Side |
|
|
CPRER2015 |
White Mono Ribbon, Yield 1000 Cards/Ribbon Single side |
|
|
Other Colours available |
Please Call our Sydney Office on: 02-8875 4544 |
|
Printing Method |
Colour Dye sublimation and Monochrome thermal transfer |
|
Printing Speed (Max.) |
Colour (YMCKO) 1 side up to 150 cards/hour Colour (YMCKO) 2 sides up to 125 cards/hour Monochrome 1 side up to 1000 Cards/hour Monochrome 2 sides up to 350 Cards/hour |
|
Resolution/Dot pitch |
300 dpi, 11.8 dots/mm |
|
Residential fonts |
Arial 100, Arial Bold 100 Barcode: Code 39, Interleave 2 of 5 |
|
Software |
Comes standard with eMedia Card Designer Software for designing and editing badges. Compatible with Windows™ 7, XP, Vista & 2003 Server Connection to Microsoft™ Excel databases |
|
Supported OS Platforms |
Windows™ 7 (32 & 64 bits), XP, Vista (32 & 64 bits), Windows™ 2003 Server. Windows™ 2000 drivers available on request. MAC OS X v10.2 ~ 6 Linux |
|
Media Type |
All PVC, Composite PVC Cards, PET, ABS1 and special varnished (under specific conditions) cards |
|
Card Format |
ISO CR-80 – ISO 7810 (53.98 mm x 85.60 mm – 3.375” x 2.125”) |
|
Card thickness |
From 0.25 mm (10 mil) to 1 mm (40 mil) 0.25 cards should only be used for Monochrome printing |
|
Card Feeder Capacity |
100 cards (0.76 mm – 30 mil), |
|
Output hopper Capacity |
100 cards (0.76 mm – 30 mil), |
|
Standard Interface |
USB |
|
Optional Interfaces |
Ethernet LAN |
|
Operator Panel |
1-Button and 4-LED control Panel |
|
Memory |
16 Mb RAM |
|
Weight |
7.4 Kg |
|
External Dimensions (W x D x H) |
237 x 447 x 235 mm |
|
Operating temp. range |
15 to 30 ºC, Humidity 20 to 65% non condensing |
|
Storage temp. range |
-5 to 70 ºC, Humidity 20 to 70% non condensing |
|
Operating ventilation |
free air |
|
Power Supply |
220-240V, 1.8A, 50/60Hz Printer 24 Volts DC 3A |
|
Warranty |
Printer, Print Head: 3 Year Warranty, unlimited passes (subject to observance of specific conditions and use of Evolis genuine consumables) |
