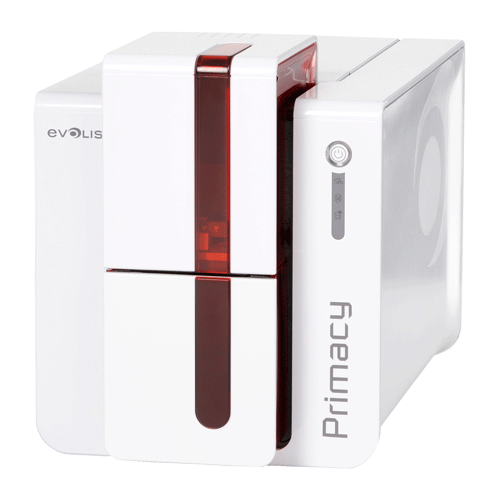

Durable Mono or Colour Single-sided or Double- sided Card Printer
-
High Resolution 300 Dpi Print head
-
Comes with Evolis Premium Suite® Software
-
Output hopper with 50 card capacity
-
Integrated ribbon saver for Monochrome Printing
-
Enhanced Colour management
-
Edge to edge printing
-
16 MB of RAM
-
Standard USB Interface
-
Optional internal Ethernet interface
-
Optional MSR encoder, contact or contactless smart card encoder or all 3 in one
-
Option: upgrade kit for double sided printing
|
Upgrade Kits |
EVPR-SDKIT |
Upgrade Kit from Single sided to Double sided Printing |
|
TBA |
Smart Contact station |
|
|
TBA |
Smart Contact encoding unit |
|
|
TBA |
Smart Contactless encoding unit |
|
|
Cards |
CPCEC4001 |
0.76mm plain white PVC card |
|
CPCEC4003 |
HiCo plain white Magnetic Stripe cards |
|
|
CPCEC4001S |
0.76mm plain white PVC card with Signature Strip |
|
|
Ribbons |
CPRER6F003S |
YMCKOK Colour Ribbon, Yield 200 Cards/Ribbon |
|
CPRER5F008S |
YMCKO Colour Ribbon, Yield 300 Cards/Ribbon |
|
|
CPRER5F002S |
YMCKO Colour Ribbon, Yield 200 Cards/Ribbon |
|
|
CPRERCT023N |
Black Mono Ribbon, Yield 2000 Cards/Ribbon |
|
|
CPRERCT015N |
White Mono Ribbon, Yield 1000 Cards/Ribbon |
|
|
Other Colours available |
Please Call our Sydney Office on: 02-8875 4544 |
|
Printing Method |
Colour Dye sublimation and Monochrome thermal transfer |
|
Printing Speed (Max.) |
Colour (YMCKO) 1 side up to 210 cards/hour Colour (YMCKO-K) 2 sides up to 140 cards/hour Monochrome 1 side up to 850 Cards/hour |
|
Resolution/Dot pitch |
300 dpi, 11.8 dots/mm |
|
Residential fonts |
Arial 100, Arial Bold 100 Barcode: Code 39, Code 128, EAN 13, interleaved 2 of 5 |
|
Software |
Comes standard with Evolis Premium Suite® Software: Printer Driver Evolis Print Centre for printer management & setup Evolis Printer Manager for two-way notifications (requires net 4.0 client profile) Supports Windows™ 7 (32 & 64 bits), XP SP2, Vista (32 & 64 bits) Also supplied with eMedia CS Card designer standard edition unlimited version for designing and editing badges. Compatible with Windows™ 7, XP, Vista & 2003 Server Connection to Microsoft™ Excel databases |
|
Supported OS Platforms |
Windows™ 7 (32 & 64 bits), XP, Vista (32 & 64 bits), Windows™ 2003 Server. Windows™ 2000 drivers available on request. MAC OS X v10.2 ~ 6 & Linux supplied on request |
|
Media Type |
All PVC, Composite PVC Cards, PET, ABS1 and special varnished (under specific conditions) cards |
|
Card Format |
ISO CR-80 – ISO 7810 (53.98 mm x 85.60 mm) |
|
Card thickness |
From 0.25 mm (10 mil) to 1.25mm (50 mil) |
|
Card Feeder Capacity |
100 cards (0.76 mm – 30 mil), |
|
Output tray Capacity |
100 cards (0.76 mm – 30 mil) |
|
Reject tray Capacity |
30 cards (0.76 mm – 30 mil) |
|
Standard Interface |
USB 1.1 |
|
Optional Interfaces |
Ethernet LAN 10/100 |
|
Operator Panel |
1-Button and 4-LED control Panel |
|
Memory |
16 Mb RAM |
|
Weight |
4.02 Kg |
|
External Dimensions (W x D x H) |
381 x 205 x 247 mm 481 x 205 x 247 mm with reject tray |
|
Operating temp. range |
15 to 30 ºC, Humidity 20 to 65% non condensing |
|
Storage temp. range |
-5 to 70 ºC, Humidity 20 to 70% non condensing |
|
Operating ventilation |
free air |
|
Power Supply |
220-240V, 1.8A, 50/60Hz Printer 24 Volts DC 3A |
|
Warranty |
Printer, Print Head: 3 Year Warranty, unlimited passes (subject to observance of specific conditions and use of Evolis genuine consumables) |
|
Eco-friendly |
Sleep mode and reduced energy consumption |
|
Certifications |
CE, FCC, IEC, VCC1, CCC, KC, ErP 2009/125/CE, Energy Star, RoHS |
