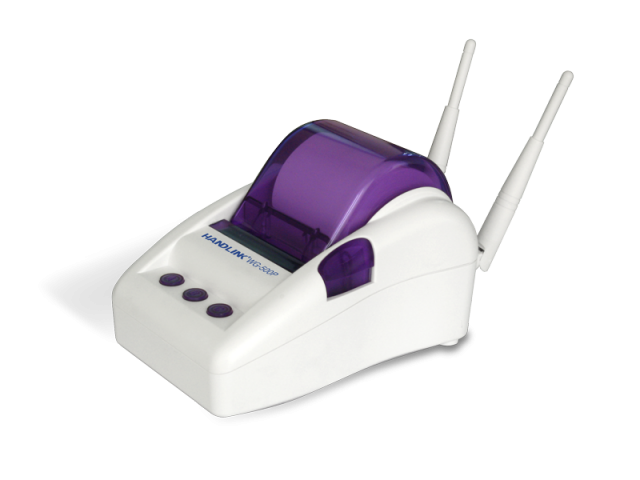

WIFI Hotspot Account Generator, All-In-One Hotspot Gateway with Built-In Thermal Printer
The WG-500P from Handlink is a unique and innovative hotspot gateway. It is more than a simple Wi-Fi hotspot device; it’s also equipped with IP Plug and Play technology so there’s no need for end-users to change any settings in the their devices. It’s a fast, easy and trouble free to offer guest Wi-Fi.
New features!
Data Volume Based Billing
Now operators can configure data volume base billing on WG-500P.
Free Trial function
Now operators can configure a Free Trial for subscribers. Subscriber can use free trial hotspot Internet service by volume or by time.
Login page auto-resizing function
Login page Auto-Resizing on WG-500P is useful for phones and handheld devices.
Standard Features
- All-In-One Instant Hotspot Gateway with built-in Thermal Printer
- Compatible with IEE802.11n/b/g , Wireless 2T2R 2.4GHz with 300Mbps high speed network
- Supports up to 30 simultaneous devices and up to 256 local accounts
- Supports QR Code, making it more convenient for portable devices to login
- Supports WPA/WPA2 Encryption
- AAA Control and Billing Support
- Supports network access control service including Authentication, Authorization and Accounting (AAA) for internet subscribers and 10 billing profiles
- Transparent HTTP proxy, Layer 2 Isolation, Administration access Control , SSL login page and various WAN connections
- VPN PASS Through
- Run your VPN or Secure tunnelling client software to connect to your company’s VPN server
- IP Plug and Play Internet Access
- Zero configuration Internet access!
- *new : Certified MikroTIK compatible printer (Can be used as a MicroTik hotspot ticket printer with special firmware load)
Network Specification
- IEEE802.3 10BaseT ethernet
- IEEE802.3u 100BaseTX fast ethernet
- IEEE802.11n/b/g
Wireless
- IEEE802.11n
- 4 ESSID
- Frequency Band : 2.4 GHz
- Wireless Operation Range : Up to 100 meters (in open space)
- Suggested Max. Concurrent Devices : Up to 30 (system will not limit it)
- Wireless Data Rate : Up to 300Mbps
- Auto fall back to 802.11b/g
Networking
- IP Plug and Play (iPnP)
- HTTP Proxy support
- SMTP server redirection
- DHCP server (RFC 2131) / DHCP relay (RFC 1542)
- Static IP / DHCP / PPPoE / PPTP WAN client
- NAT (RFC 1631); IP routing; NTP support
- Local account: 256
- Max session number up to 16384
Authentication
- Built in authentication
- Radius authentication/ Accounting
- Web-based authentication/ Account manager/ Authorization user agreement
Encryption
- WEP 64/128bit, WPA-PSK TKIP, WPA2-PSK (AES)
- WPA/WPA2 Mix mode
Billing
- Accounting without PC operating
- 10 Customizable billing profiles
- Prepaid billing mechanism
- Time-base billing (by minute, hour, day and week)
- Account log max. 1000
Security and Firewall
- Layer 2 Isolation
- SSL Login Page/ SSL Administration
- VPN pass through (IPSec/PPTP/L2TP)
- Customize SSL certificate
- Pass through destination IP/URL
- Pass through source IP/MAC
- Restricted destination filtering IP/URL
- VPN PPTP client
Management
- Remote web-based configuration and management
- Authorized remote management (Access Control List)
- Firmware upgrade (RFC 1350) via HTTP/TFTP
- Scheduled firmware upgrade
- Dynamic DNS
- Real-time current user list / DHCP clients list / Session list / Account list
- Syslog
- Bandwidth / Session control per user
- Session trace
- Secure remote
- SNMP V1/V2c (Read Only and OID 500)
- Ping command
- SSL certificate upload
Marketing Cooperation
- Advertisement URL link
- Walled garden
- Customize login page, Logo, Information windows, Account print out, User agreement
- Portal page
Power Requirement
- External power adaptor
- Input: 100-240 VAC, 50/60 Hz
- Output: 12V, 1.5Amp
Dimension
- (L): 109 mm / (W): 155 mm / (H): 90 mm
- Weight: about 340g (net)
Printer Tray
- Push button: Push to open printer cover
- Tear bar: Cuts receipt paper
- Button A: Flashing when printer cover is opened
- Paper roll housing: Put paper roll here
- Paper Roll Specification : (W): 58(+1/-1) mm /(L): 50meters (max) / Thickness: 65um, Outside diameter: 63(+2/-2) mm, Inside diameter: 12(+0.5/-0.5) mm, Weight: 120 grams.
Environmental Conditions
- Operating temperature: 0 °C to 50°C
- Storage temperature: -10 °C to 60°C
- Humidity: 10% ~ 90% non-condensing
- Humidity: 10% ~ 80% condensing
