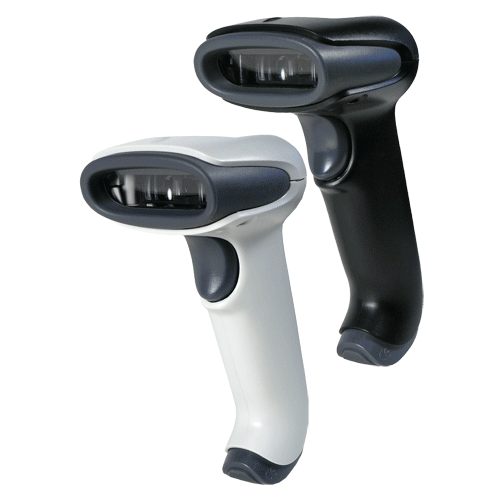

High Performance Hand Held Linear Imaging Scanner
-
100% Solid State Construction, No moving parts!
-
Excellent tolerance to lateral hand motion, makes it much easier to use
-
Bright Sharp Aiming Line
-
Fast Decoding Rate up to 400 scans/sec
-
Used Indoors and Outdoors in Bright Sunlight
-
Programmable Optical and Audible Read Confirmation
-
Exceptional Read Performance even on poorly printed or damaged barcodes
-
Improved ability to read degraded and damaged bar-codes
-
Powerful, Flexible Architecture
-
Fully Programmable
-
Hands Free Stand or Counter Holder available
?
|
Hands-free Stand |
HFSTAND3200 |
2-position Adjustable Handsfree Stand for IT-3200 |
|
Power Supply |
AD5VR10P |
Optional Power Supply |
|
Reading distance |
1 cm to 46 cm on 13 mil (100% UPC) |
|
Reading width |
on 15 mil code 11 cm wide at 9 cm |
|
Resolution |
4 mil at 10cm distance |
|
Pitch Angle |
+/- 55° |
|
Skew Angle |
+/- 55° |
|
illumination |
630nm Visible Red LED |
|
Sensor |
2048 Element Linear Imager |
|
Scan rate |
up to 400 scans/sec |
|
Ambient illumination |
0 – 70,000 Lux |
|
Mechanical Shock |
Operational after 25 drops from 1.2 m to concrete |
|
Interfaces |
PS2 Keyboard Wedge |
|
RS-232 (May require external power supply) |
|
|
USB |
|
|
Many other common interfaces |
|
|
Symbologies support |
GS1 Databar, Codabar, CODE 3 of 9 including PARAF, Interleaved 2 of 5, Straight 2 of 5 Industrial, Matrix 2 of 5, Code 11, Code 93, Code 128, UPC, EAN/JAN, Chinal Postal code. 2005 Sunrise/GTIN Compliant |
|
Operation Mode |
Manual, Presentation Mode or Auto Trigger. |
|
ESD Protection |
Exceeds CE EN55024 |
|
MTBF |
per MIL-HDBK-217F Ground Benign exceeds 85,000 hours |
|
Operating Temperature |
0° to 50°C |
|
Humidity |
0 to 95% non-condensing |
|
Warranty |
2 Year Factory Warranty (not on cable, conditions apply) |
