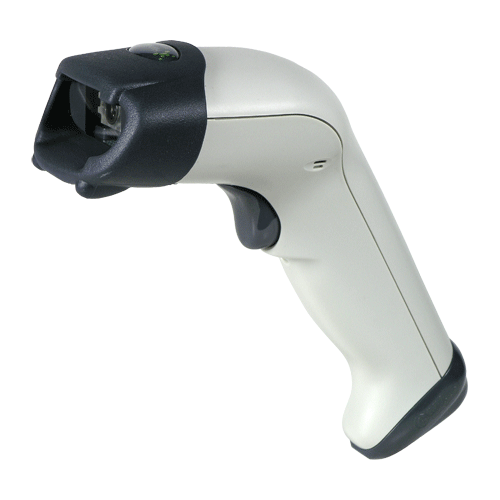

High Performance Hand Held Scanner
-
Powered by Adaptus™ Imaging technology
-
Ergonomic Design, small sleek housing
-
Solid State Heavy Duty Construction, No moving parts!
-
Area Imaging Technology
-
Bright Sharp Green Aiming Line
-
Fast Decoding Rate
-
Omni Directional Reading
-
Used Indoors and Outdoors in Bright Sunlight
-
Optical and Audible Read Confirmation
-
Exceptional Read Performance
-
Manual, Presentation Mode or Auto Trigger
-
Reads Degraded and damaged bar-codes
-
Powerful, Flexible Architecture
-
Fully Programmable
?
|
Hands free Stand |
HFSTAND-ASF |
Hands free Stand for IT4200 |
|
Power Supply |
AD5VR10P |
Optional Power Supply |
|
Reading distance |
Narrow width |
Depth of Field |
|
8.3 mil |
8.9 – 19.1 cm |
|
|
13 mil UPC |
5.3 – 33.3 cm |
|
|
6.6 mil PDF417 |
11.2 – 15.5 cm |
|
|
10 mil PDF417 |
7.9 – 22.6 cm |
|
|
15 mil Data Matrix |
5.8 – 25.7 cm |
|
|
35 mil MaxiCode |
5.1 – 32.8 cm |
|
|
Image |
VGA 752×480, Binary,TIFF or JPEG output |
|
|
Resolution |
5 mil at 13cm distance |
|
|
Pitch Angle |
+/- 40deg. |
|
|
Skew Angle |
+/- 40 deg |
|
|
Ambient Light |
0 to 100,000 Lux (full Sunlight) |
|
|
Mechanical Shock |
Operational after 25 Drops from 1.5m to concrete |
|
|
ESD Protection |
Functional after 100 8kV discharges |
|
|
illumination |
626nm +/- 30nm Visible Red LED |
|
|
526nm +/- 30nm Green aiming LED’s |
||
|
Interfaces |
PS2 Keyboard Wedge |
|
|
RS-232 (May require external power supply) |
||
|
USB |
||
|
Many other common interfaces |
||
|
Symbologies support |
Linear |
Codabar, CODE 3 of 9 including PARAF, Interleaved 2 of 5, Code 2 of 5, Matrix 2 of 5, Code 11, Code 93, Code 128, UPC, EAN/JAN, RSS. |
|
2 Dimensional |
PDF417, MicroPDF417, Maxicode, Data Matrix, QR Code, Aztec, Aztec Mesas, Code 49 & EAN-UCC Composite |
|
|
Postal |
Australian 4-state, Postnet, Planet Code, British Post, Canadian Post, Japanese Code, KIX |
|
|
OCR Fonts |
OCR-A, OCR-B |
|
|
Warranty |
2 Year Factory Warranty (not on cable, conditions apply) |
|
|
Dimensions L x H x W |
14 x 13.5 x 6.6 cm |
|
|
Weight |
140 g |
|
|
Operation Mode |
Manual, Presentation Mode or Auto Trigger. |
|
