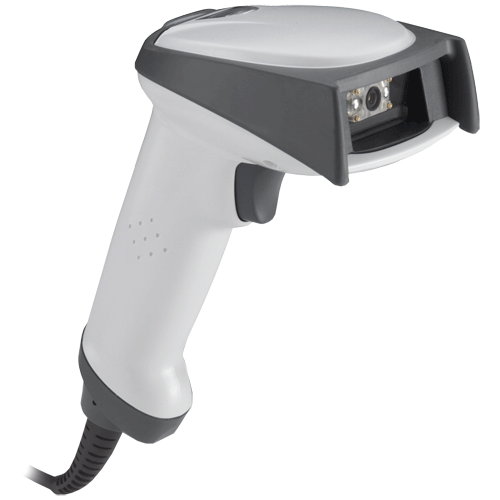

Area Imaging Technology
-
Bright Sharp Aiming Line
-
Fast Decoding Rate
-
Omni Directional Reading
-
Used Indoors and Outdoors in Bright Sunlight
-
Optical and Audible Read Confirmation
-
Exceptional Read Performance
-
Manual, Presentation Mode or Auto Trigger
-
Reads Degraded and damaged bar-codes
-
Powerful, Flexible Architecture
-
Fully Programmable
-
Limited 5 Factory Year Warranty (not on cable)
-
Hands Free Stand or Counter Holder available
-
Also available with SmartFocus Imaging Engine
?
|
Hands free Stand |
HFSTAND5 |
Hands free Stand for IT46/48/56/5800 |
|
Power Supply |
AD5VR10P |
Optional Power Supply |
|
Reading distance |
Narrow width |
Depth of Field SR |
Depth of Field SF |
|
7.5 mil |
|
5.1 – 15.2 cm |
|
|
8.3 mil |
7.6 – 18.0 cm |
|
|
|
13 mil (100% UPC) |
4.1 – 32.3 cm |
3.8 – 21.3 cm |
|
|
6.6 mil PDF417 |
10.2 – 14.5 cm |
5.8 – 14.0 cm |
|
|
10 mil PDF417 |
6.6 – 21.6 cm |
4.3 – 18.0 cm |
|
|
15 mil PDF417 |
4.6 – 24.6 cm |
3.3 – 17.8 cm |
|
|
15 mil QR Code |
|
4.3 – 17.0 cm |
|
|
35 mil MaxiCode |
3.8 – 31.8 cm |
|
|
|
Image |
VGA, 752×480, Binary,TIFF or JPEG output |
||
|
Resolution |
5 mil at 13cm distance |
||
|
Pitch Angle |
+/- 40deg. |
||
|
Skew Angle |
+/- 40 deg |
||
|
illumination |
617nm +/- 30nm Visible Red LED |
||
|
526nm +/- 30nm Green aiming LED’s |
|||
|
Interfaces |
PS2 Keyboard Wedge |
||
|
RS-232 (May require external power supply) |
|||
|
USB |
|||
|
Many other common interfaces |
|||
|
Symbologies support |
Linear |
Codabar, CODE 3 of 9 including PARAF, Interleaved 2 of 5, Code 2 of 5, Matrix 2 of 5, Code 11, Code 93, Code 128, UPC, EAN/JAN, RSS. |
|
|
2 Dimensional |
PDF417, MicroPDF417, Maxicode, Data Matrix, QR Code, Aztec, Aztec Mesas, Code 49 & EAN-UCC Composite |
||
|
Postal |
Australian 4-state, Postnet, Planet Code, British Post, Canadian Post, Japanese Code, KIX |
||
|
OCR Fonts |
OCR-A, OCR-B |
||
|
Ambient Light |
0 to 100’000 Lux (Full Sunlight) |
||
|
Sealing |
IP41 (Water & Dust Resistant) |
||
|
Mechanical Shock |
Operational after 50 Drops from 1.8m to concrete |
||
|
Warranty |
5 Year Factory Warranty (not on cable, conditions apply) |
||
|
Operation Mode |
Manual, Presentation Mode or Auto Trigger. |
||
|
Operating Temperature |
0ºC to +50ºC |
||
|
Humidity |
0 to 95% non-condensing |
||
|
ESD Protection |
Functional after 100 discharges at 15kV |
||
|
Vibration |
Withstands 5G peak from 22 to 300Hz |
||
