Bright Sharp Green Aiming Line
-
Very Fast Decode Rate
-
Used Indoors and Outdoors in Bright Sunlight
-
Optical and Audible Read Confirmation
-
Exceptional Read Performance, can read linear barcodes omni-directional
-
Manual, Presentation Mode or Auto Trigger
-
Reads Degraded and damaged bar-codes
-
Powerful, Flexible Architecture
-
Fully Programmable
-

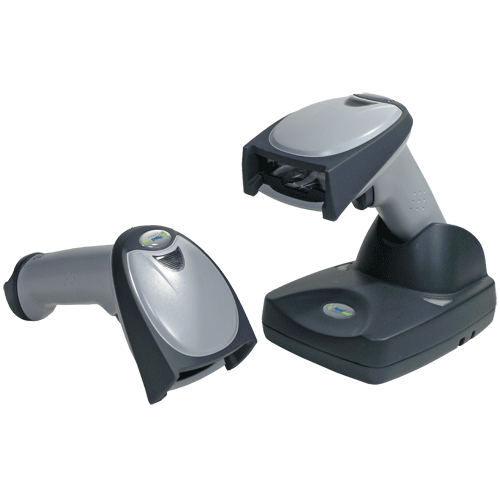

Designed to work as Hands-free scanner when placed in the base
?
|
Base Station |
IT2020 |
Charge & Communication base |
|
IT2020CB |
Charge only base |
|
|
Battery |
IT5620BATT |
Spare Rechargeable Battery |
|
Power Supply |
AD9VR30P |
Optional Power Supply |
|
Reading distance |
Narrow width |
Depth of Field SR |
Depth of Field SF |
|
7.5 mil |
|
5.1 – 15.2 cm |
|
|
8.3 mil |
7.6 – 18.0 cm |
|
|
|
13 mil (100% UPC) |
4.1 – 32.3 cm |
3.8 – 21.3 cm |
|
|
6.6 mil PDF417 |
10.2 – 14.5 cm |
5.8 – 14.0 cm |
|
|
10 mil PDF417 |
6.6 – 21.6 cm |
4.3 – 18.0 cm |
|
|
15 mil PDF417 |
4.6 – 24.6 cm |
3.3 – 17.8 cm |
|
|
15 mil QR Code |
|
4.3 – 17.0 cm |
|
|
35 mil MaxiCode |
3.8 – 31.8 cm |
|
|
|
Aiming |
Green Aiming LED’s 526nm +/-30nm |
||
|
Pitch Angle |
+/- 40 deg. |
||
|
Skew Angle |
+/- 40 deg. |
||
|
Motion Tolerance |
Standard 10 cm/sec Streaming Presentation™ Mode SF: 50 cm/sec on 100% UPC/EAN at the plane of optimum focus |
||
|
Image |
VGA 752 x 480; Binary, TIFF or JPEG output |
||
|
Symbologies support |
PDF417, MicroPDF417, MaxiCode, Data Matrix, QR Code, Aztec, Aztec Mesas, Code 49, EAN-UCC Composite, Codabar, CODE 39, Interleaved 2 of 5, Code 93, Code 128, UPC, EAN/JAN, GS1 Databar, codablock, Australia Postal Code, Many other Postal Codes, OCR-A & B, 2005 Sunrise/GTIN complaint. |
||
|
Operation Mode |
Manual, Presentation Mode or Auto Trigger. |
||
|
Radio |
Bluetooth® V1.2 Frequency-Hopping |
||
|
Frequency: 2.4 to 2.4835GHz (ISM Band) |
|||
|
Range: Typical 10 m |
|||
|
Data Rates: 720 KBps |
|||
|
Internal Battery |
Lithium ion 4.2V |
||
|
Capacity: 1800 mAh |
|||
|
Number of Scans: 50,000 |
|||
|
Expected hours of Operation: 16 Hours @ 1 Scan/sec |
|||
|
Charge time (9VDC power): 4 Hours to full charge from complete discharge |
|||
|
Sealing |
IP41 (Water & Dust Resistant) |
||
|
Operating Temperature |
0 to 50 °C |
||
|
Humidity |
up to 95% Non Condensing |
||
|
Mechanical Shock |
Functional after 50 drops from 1.8m |
||
|
Height |
16.5 cm |
||
|
Weight |
255g |
||
|
Warranty |
3 Year Factory Warranty (not on cable, conditions apply) |
||
