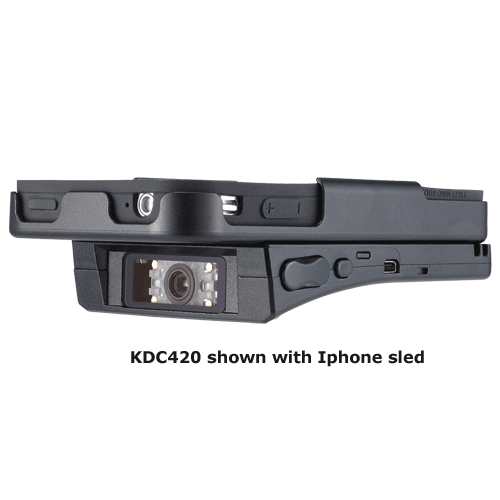

1D Laser or 2D Adaptus® 5 Imaging Engine
-
Decodes all major 1D, 2D symbologies and OCR-A/B depending on Scan engine
-
Class2 Bluetooth® Communications
-
User replaceable custom housing for Smartphones and Tablets
-
Rechargeable Li-Ion battery with user-accessible compartment for easy replacement
-
Optional RFID
-
Powerful keyboard emulator with keyboard wedging, application generation, DB look up and inventory program.
|
Battery |
KDC400BATT |
Rechargeable Battery (1200 mAh) for KDC-350/400 |
|
Charge Cradle |
KDC400CRADLE |
Recharge Cradle for the KDC-400 Series |
|
Sled Set |
KDC4SL-IP5 |
Sled attachment for IPhone 5 |
|
KDC4SL-IPT5 |
Sled attachment for IPod Touch 5 |
|
|
KDC4SL-GN8 |
Sled attachment for Galaxy note 8 |
|
|
KDC4SL-GS4 |
Sled attachment for Galaxy S4 |
|
|
Many others available |
Please phone 02-8875 4544? |
|
Scan Engine |
2D Standard Range or Special Focus Adaptus 5 752 x 480 CMOS Sensor Scan range SR: 53~335mm SF: 51~226mm depending on Barcode size Range of Laser Scan Engines |
|
Communication |
Bluetooth V2.1+EDR, Class 2, HID/SPP Optional RFID: Many cards supported (see Brochure) Optional MSR: 3 Track complies with ISO7810/7811/7812 |
|
Symbologies supported |
All major 1D & 2D Bar-codes depending on scan engine used |
|
Operation |
CPU: ARM 7 32-bit Proprietary OS RTC: Supports year, month, day, hour, minute, second (leap year supported) |
|
Memory |
FlashROM: 256KB RAM: 64KB |
|
Power |
Rechargeable Battery: Lithium-ion 3.7V 1200mAh Charged through the USB |
|
Operating Temperature |
0 to 45 °C (depends also on Smartphone or Tablet used) |
|
Storage Temperature |
-20 to 45 °C |
|
Humidity |
5 – 85 % (non-condensing) |
|
Drop Test |
1.5 m / 5 ft drop onto concrete surface (not for Smartphone/Tablet |
|
Warranty |
1 Year limited Factory Warranty (not on cable) |
|
Dimensions (W x H x D) |
Barcode Model Basic: 65 x 95 x 10~20 mm Barcode/MSR Model Basic: 65 x 121 x 10~20 mm |
|
Weight |
Barcode Model Basic: 94 g Barcode/MSR Model Basic: 115 g |
|
Product Compliance |
CE, FCC, KC, TELEC |
