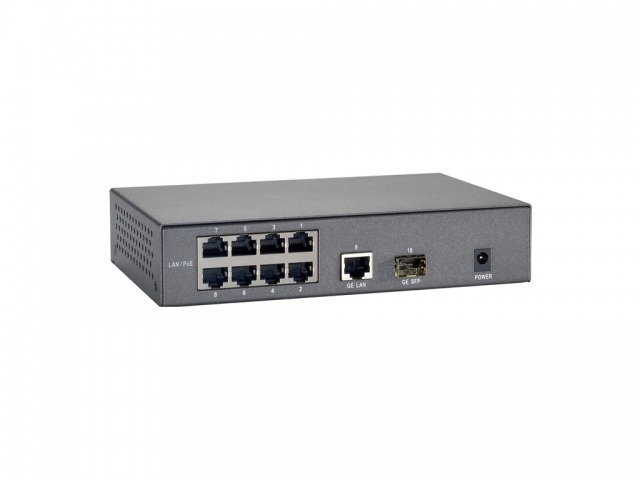

This PoE switch is a 10/100Mbps PoE + 2-port 10/100/1000Mbps (UTP/SFP) Switch with PoE On/Off control capability. With 8 dip switches, each PoE port can be manually set for On-Off control. It supports up to 15.4W/30W on each LAN port when the corresponding port DIP switch is set ON.
The Gigabit ports support 10/100/1000Mbps uplink to other Ethernet devices via UTP or SFP port.
This switch supports power protection as OVP (Over Voltage Protection), OCP (Over Current Protection), OTP (Over Temperature Protection), and provide robust short-circuit protection and surge protection.
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- PoE on/off control per port with dip switches
- Total PoE power budget: 120W, up to 30W per port
- Simple Plug and Play installation
Connectors and Cabling:
8 x 10/100Base-TX RJ-45 PoE Ports
1 x 10/100/1000Base-T RJ-45 PoE Port
1 x 100/1000Base-X SFP Slot
Buttons:
PoE Power On/Off Switch
Indicators:
Power, Active, 10/100/1000M, PoE
Transmission Method:
Store-and-Forward
Power:
Power Consumption: < 120W
Power Input: 100-240V AC, 50-60 Hz, 52VDC out, External Power Supply
Standards & Protocols:
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
IEEE 802.3x Full-duplex Flow Control
PoE:
Power Budget: Max. 115W
Power Output: 52V DC, up to 30W per port
Protection: PoE over current & PoE circuit sorting protection,
Pin Assignment: 4/5(+), 7/8(-)
Data Transfer Rate:
10/100/1000Mbps
Packet Forwarding Rate:
1000Mbps port – 1,488,000pps
100Mbps port – 148,000pps
10Mbps port – 14,880pps
Environment
Temperature (°C):
Operating: 0°C ~ 45°C
Storage: – 40°C ~ 70°C
Humidity (Non-condensing):
Storage: 10% ~ 90%
Operating: 10% ~ 90%
Physical Specifications
Dimensions (W x D x H mm):
188 x 118 x 38 mm
Weight (g):
1200g
