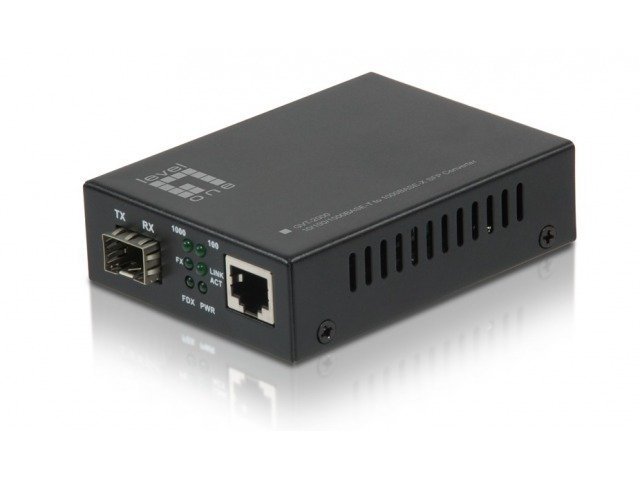

- Transfers data from 10/100/1000Base-T copper to fiber interfaces
- SFP slot supports pluggable Gigabit optic modules that enabling you to choose from a variety of transceiver
- 9K jumbo frames to increase data transfer rates
- Built-in LFP (Link Fault Pass-through) Technology
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Dip switches for customized configuration
- Supports low-time lag transmission
- Supports the transmission of extra-long packets up to 1.6KB
- -10°C ~ 55°C operating temperature range
Connectors and Cabling:
Fiber SFP slot; RJ-45 Port CAT-5/5e Twisted Pair
cable Auto MDI/MDI-X (Max to 100m) and Auto-Negotiation
Wavelength(nm):
depend on SFP module
Indicator:
PWR,TX (FDX, 100, 1000, Link/Act), FX Link/Act
Transmission Method:
Store and forward (Default)
Power:
DC 5V/2A
Standards & Protocols:
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
IEEE 802.3x Flow Control (full-duplex flow control)
IEEE802.3z 1000Base-SX/LX,
Features
General:
DIP Switch 1: LFP function
DIP Switch 2 and 3 performance 4 types work mode
DIP Switch 2 and 3 is OFF = Store and forward
DIP Switch 2 is OFF, 3 is ON = Cut through mode
DIP Switch 2 is ON, 3 is OFF = Smart pass through
DIP Switch 2 and 3 is ON = Pass through mode
Performance
Operating Distance:
Depend on SFP Module
Environment
Temperature (°C):
Storage: -40 ~75 °C
Operating: -10 ~ 55 °C
Humidity (Non-condensing):
5 ~ 90 %
Physical Specifications
Dimensions (W x D x H mm):
71 x 94 x 26 mm
Weight (g):
420 g
Others
Approval and Compliance:
CE, FCC
Deployment:
Desk, chassis mounted
