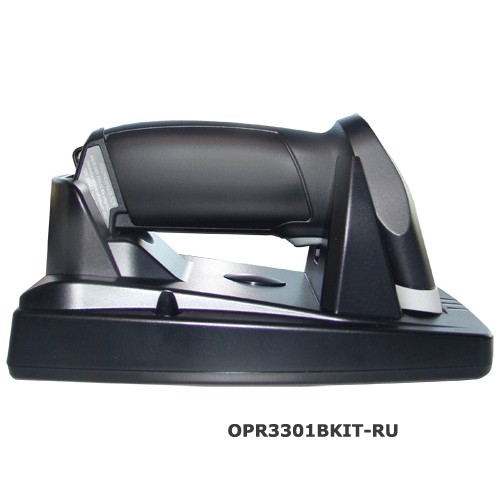

Low cost Cordless Handheld 2D Imager
- Bluetooth ver. 2.0
- Up to 10 m Range
- Small form factor
- 1.3 Megapixel Imager
- up to 80 Frames/sec
- Long operating time on battery charge
- Reads 1D & 2D barcode symbologies from any orientation
- Ultra-lightweight, yet solid scanner withstands drops up to 1.5 meter onto concrete.
?
|
Communication/Charge Cradle |
OPCRD3301B-RU |
Communication/Charge Cradle with RS232, USB Cable and Power supply, Black |
|
Adaptor |
AD-OP6VR10P1.7 |
6V Regulated Power Supply |
|
Light source |
Aiming laser diode, illumination LEDs |
|
Scan Method |
CMOS area Sensor, SXGA (1.3 millions pixels), gray scale |
|
Scan rate |
Up to 80 fps (excl. focusing) |
|
Trigger mode |
Manual, Auto trigger |
|
2D image format |
Windows Bitmap, JPEG, TIFF |
|
2D image output mode |
4 resolutions (full, 1/2, 1/3, 1/4), 2 ranges (horizontal, vertical) |
|
Min. resolution at PCS 0.9 |
0.127 mm / 5 mil for Code39 / QR code 0.169 mm / 7 mil for DataMatrix |
|
Depth of field |
for QR code 15 – 170 mm (res. 0.139 mm / 13 mil), For Code39 15 – 55 mm (res. 0.127 mm / 5 mil) 15 – 200 mm (res. 0.254 mm / 10 mil) 90 – 870 mm (res. 1.0 mm / 39 mil) |
|
Pitch Angle |
-50 to 0°, 0 to +50° |
|
Roll (Tilt) Angle |
360° |
|
Skew (Yaw) Angle |
-50 to -0°, +0 to +50° |
|
Field of view |
Horizontal 40°, Vertical 23° |
|
Reading Indicators |
1 LED (red/green/blue), Buzzer |
|
Flash Memory |
256 KB flash ROM |
|
RAM Memory |
32 Kb Fast SRAM |
|
Communication |
Bluetooth: Ver. 1.2, SPP, output power class 2, range up to 10 m, 1 to 1 connection, master/slave mode, authentication and encryption |
|
Symbologies supported |
1D: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey Postal Code: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code & POSTNET 2D Code: Aztec Code, Aztec Runes, Chinese Sensible Code, Codablock F, Composite codes, Data Matrix (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code |
|
Battery |
Rechargeable battery: Lithium-Ion 3.7V 1100mAh |
|
Charging method |
Separate Cradle CRD3301 & power supply |
|
Current Consumption |
150 mA (standby), max. 300mA |
|
Operating Temperature |
-20 to 50 °C |
|
Storage Temperature |
-25 to 60 °C |
|
Operating Humidity |
5 – 85 % (non-condensing) |
|
Storage Humidity |
5 – 85 % (non-condensing) |
|
Ambient light immunity |
Fluorescent 10,000 lx max, Direct sun 100,000 lx max, Incandescent 10,000 lx max |
|
Drop Test |
1.5 m / 5 ft drop onto concrete surface |
|
Vibration Test |
10 – 100 Hz with 2G for 1 Hour |
|
Protection rate |
IP42 |
|
Warranty |
2 Year limited Factory Warranty (not on cable) |
|
Dimensions (W x H x D) |
Scanner 56 x 137 x 113 mm |
|
Weight |
Scanner 110 g (inc. Battery) |
|
Product Compliance |
CE, FCC, VCCI, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2 |
