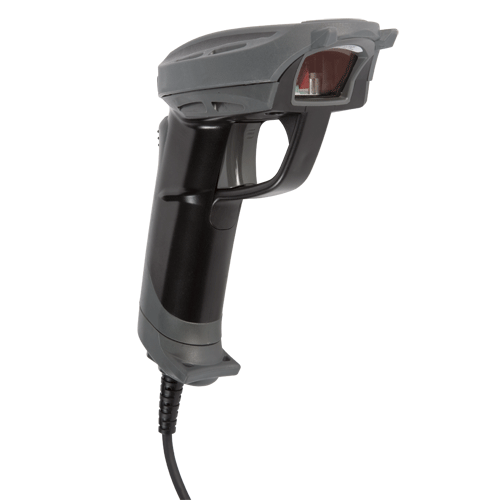

Handheld Laser Scanner
-
Long Range scanning
-
40 scans/second
-
Industrial performance
-
Ultra-lightweight, yet solid scanner withstands drops up to 2 meter onto concrete.
-
Available in USB, RS232 and Keyboard Wedge interface
?
|
Adaptor |
AD-OP6VR20 |
6V Regulated Power Supply |
|
Stand |
OPR300XSTAND |
Handsfree Stand |
|
Light source |
650 nm visible laser diode |
|
Depth of field |
500 – 2800 mm (res. 1.4 mm / 55 mil), 450 – 2400 mm (res. 1 mm / 39 mil) 420 – 1500 mm (res. 0.5 mm / 20 mil) 600 – 980 mm (res. 0.33 mm / 13 mil) at PCS 0.9, Code 39 |
|
Scan rate |
40 Scans/sec |
|
Resolution |
0.127 mm / 5 mil |
|
Pitch Angle |
-35 to 0°, 0 to +35° |
|
Roll (Tilt) Angle |
-20 to 0°, 0 to +20° |
|
Skew (Yaw) Angle |
-50 to -8°, +8 to +50° |
|
Reading Indicators |
1 LED (red/green/orange) |
|
Interface |
RS232 – DB9 PTF connector with external power supply Keyboard Wedge – MiniDIN6 F/M connector USB – Ver. 1.1, HID/VCP, USB-A connector |
|
Symbologies supported |
JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, Matrix 2of5, MSI/Plessey, Telepen Composite codes, MicroPDF 417, PDF417 |
|
Input voltage |
5 V ± 10 % (Keyboard Wedge and USB), 6 V (min. 4.5, max. 6.5 V) (RS232) |
|
Input Current |
Max. 130mA (RS232), max. 125mA (Keyboard Wedge and USB) |
|
Operating Temperature |
-10 to 60 °C |
|
Storage Temperature |
-30 to 70 °C |
|
Operating Humidity |
5 – 95 % (non-condensing) |
|
Storage Humidity |
5 – 95 % (non-condensing) |
|
Drop Test |
2 m / 6.5 ft drop onto concrete surface |
|
Vibration Test |
10 – 100 Hz with 2G for 30 min |
|
Protection rate |
IP54 |
|
Dimensions (W x H x D) |
68 x 155 x 150 mm |
|
Weight |
210 g |
|
Product Compliance |
CE, FCC, VCCI, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II |
