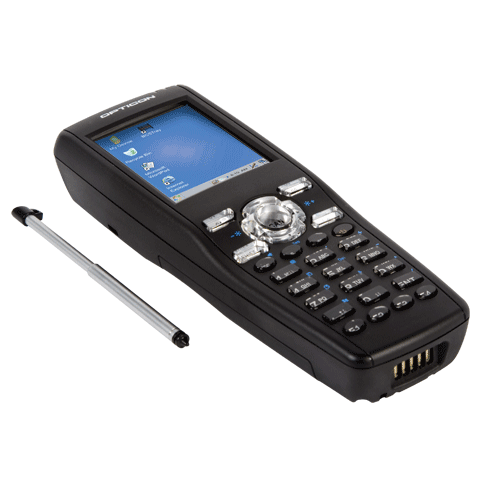

Windows CE™ Portable Data Terminal
-
Barcode Laser Scanner
-
Can withstand multiple drops to concrete from 1.5 m
-
IP-54 Rating
-
2.4 inch Colour LCD with Touch screen
-
Windows CE OS
-
Wifi IEEE 802.11b/g
-
Bluetooth
|
Cradle |
OPCRD15 |
Communication/Charging Cradle with integrated spare battery charging bay with power supply and USB Cable |
|
Adaptor |
AD-OP6VR20 |
6V 2.0A Power supply |
|
Battery |
OPH15STBATT |
Standard Capacity Battery 3.7V 1880mAh |
|
Stylus |
OPH15STYLUS |
Standard Stylus for the H15 |
|
Processor |
Intel PXA270 312Mhz |
|
Operating System |
Windows CE 5.0 |
|
Software |
Wordpad, Internet Explorer, Inbox, Active Sync, Messenger, Opticon scanner application, Accessories, Upgradeable via user accessible microSD |
|
Flash Memory |
256 MB flash ROM |
|
RAM Memory |
64 MB SRAM |
|
Expansion |
User accessible microSD + HC |
|
Scan engine |
Laser scanner |
|
Light Source |
650nM visible Laser Diode |
|
Scan rate |
100 scans/sec |
|
Reading Distance |
Depth of field: At PCS 0.9, Code 39 60 – 640 mm / 2.36 – 25.20 in (1.00 mm / 39 mil), 40 – 410 mm / 1.57 – 16.14 in (0.5 mm / 20 mil), 40 – 250 mm / 1.57 – 9.84 in (0.25 mm / 10 mil), 40 – 140 mm / 1.57 – 5.51 in (0.15 mm / 6 mil), 50 – 110 mm / 1.97 – 4.33 in (0.127 mm / 5 mil) |
|
Symbologies support |
Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey • Postal code: Chinese Post, Korean Postal Authoritycode • 2D code: Composite Codes, MicroPDF417, PDF417 |
|
Keyboard |
Entry options: 25 keys total, 12 keys (alpha)numeric keypad, 4-way navigation keys, 4 function keys, 5 control keys, 1 power key, 2 hot keys, 1 scan key |
|
Display |
Type: Graphic Transflective TFT with touch panel, 256K color with adjustable backlight Size: 2.4”, 240 x 320 pixels Mode: Portrait |
|
Battery |
Rechargeable battery: Lithium-Ion Polymer 3.7V 1880mAh |
|
Operating Time |
Ca. 8 hours (backlight on, 1 scan + W-LAN connection / 5 sec) |
|
Operating Temperature |
-10°C to 50°C |
|
Humidity |
5% to 85% relative humidity, non-condensing |
|
Mechanical Shock |
Functional after 1.5 m (5’) drop onto concrete |
|
Sealing |
IP-54 rating |
|
H x W x D |
164 x 57 x 28/24 mm |
|
Weight |
225 g (including batteries) |
|
Regulatory & Safety |
Product compliance: CE incl. LVD, FCC, cUL, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II |
