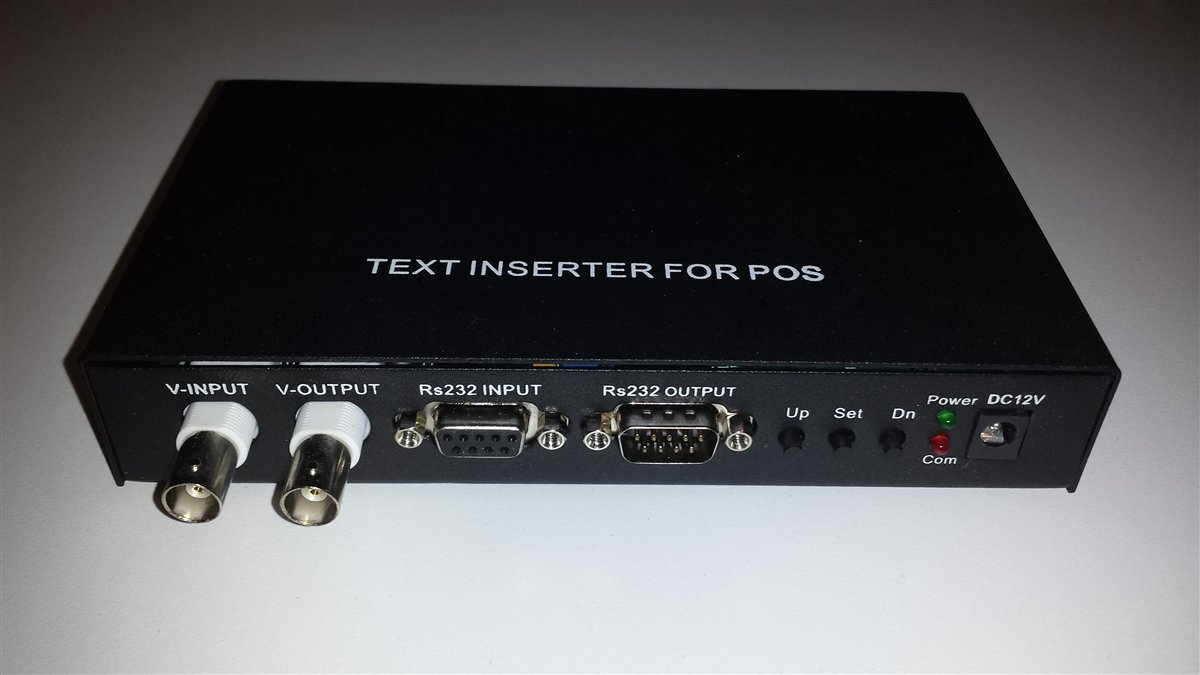

Text Inserter for POS is a video text insert device designed to display POS information. The product is aimed to superimpose the text information of merchandise, which text information is displayed on the pole display or output to printer, on the real-time surveillance video output for the purpose of a synchronized display of surveillance video together with POS information.
Text Inserter for POS has one channel for video signal input and one channel for video signal output. Each device can interface with only one POS machine. The device alone can set up the position of the POS information and its display mode, which POS information is superimposed on the video output. The overlay information can be collected through the output port of POS’s pole display or through a printer output port. All the parameters can be configured through a bilingual(Chinese and English) menu which is quite convenient.
Compatible with Idealpos Point Of Sale Software.
Technical Parameters :
|
Text display mode |
With or without background frame |
|
Characters each line |
Maximum 32 Chinese characters with 16 x 16 matrix, or 64 half-width characters |
|
Information lines |
8 lines |
|
Information display positions |
Top, middle or bottom |
|
Power Supply
|
DV12V 0.5A |
|
Temperature of working environment |
–10°C~+40°C |
|
Relative humidity of working environment |
≤95% (no condensation) |
|
Dimensions |
176(W)x 30(H) x 104(D)mm |
Interfaces and communications :
|
Function |
Interface |
Hookup |
|
Input |
RS-232 Input |
Attach serial port of POS or output port of pole display |
|
LPT Input |
Attach LPT output of POS |
|
|
Video Input |
Attach camera video input source |
|
|
Output |
RS-232 Output |
Attach to the input of POS’s pole display |
|
LPT Output |
Attach to the LPT input of POS |
|
|
Video Output |
Attach to video distributor, DVR and etc. |
|
|
|
Hookup |
Rate |
|
Communications |
POS serial port or pole display port attaching to RS-232 |
1,200 bps~9600 bps |
|
RS-232 output port attaching to input port of POS’s pole display |
1,200 bps~9600 bps |
