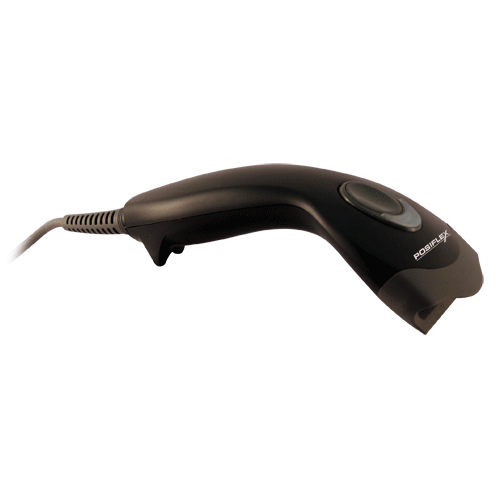

Handheld Linear Imager Scanner
-
1D long-range handheld CCD scanner
-
CCD scanner with large trigger for handy operation
-
Most 1D barcodes decoding support including GS1 DataBar
-
Depth of Field : 0 – 300 mm
-
Scan rate : 330 scans per second for single-line scanning
-
Adjustable stand for hand-free scan
-
Light weight only 120 g (Body), drop resistance 1.5 meter
-
Interface support : PS/2, RS-232C, HID USB, USB virtual COM port
|
Hands free Stand |
PFST4000 |
Hands free Stand for CD3860 |
|
Adaptor |
AD5VR10P |
5V Regulated Power Supply |
|
Light source |
617nm Visible Red Diode |
|
Optical System |
Linear CCD array |
|
Scan rate |
up to 330 Scan/sec |
|
Resolution |
0.1mm(4mils) Code39,PCS=90% |
|
Print Contrast |
30% or higher |
|
Depth of field |
0-300 mm (UPC/EAN, PCS=90%, 20mils) |
|
Scanning Angle |
42° |
|
Visual Indicator |
Blue LED = Good Read |
|
Interface |
PS2 Keyboard wedge, Standard RS-232, HID USB, USB Virtual COM Port |
|
Symbologies supported |
Auto discriminates all standard 1D barcodes, Other symbologies can be ordered optionally |
|
Voltage |
DC +5V ±5% |
|
Operating Current |
110 mA |
|
Operating Temperature |
0 ~ 50 ºC |
|
Storage Temperature |
-20 ~ 60 ºC |
|
Relative Humidity |
5% ~ 95% non condensing |
|
Dimensions |
152.3 x 64.4 x 104.9 mm |
|
Weight |
120 g (cable not included) |
