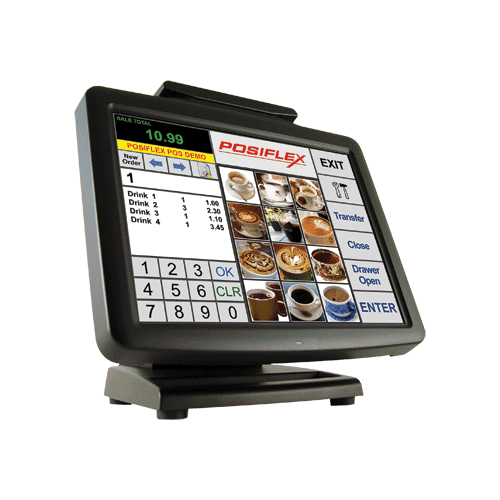

PC POS Touch System
-
Fan Free Design
-
Cast Aluminium housing
-
10″ LCD Display with 5-wire Resistive Touch Screen
-
Equipped with Intel Pine View Dual Core D525 1.8 GHz CPU and DDR3 memory
-
32 Gb or higher SSD Standard
-
1 GB RAM expandable to 4GB, in Australia 2GB default
-
Powered Serial ports
-
Optional MSR, 2 Line Pole Display
|
Pole Display |
PFPD309B-U |
2 Line 20 Character LCD Pole Display for the KS6810/12 with USB Interface |
|
PFPD2605B-U |
2 Line 20 Character VFD Pole Display for the KS6810/12 with USB Interface |
|
|
MSR (Dealer option, needs to be fitted) |
PFKSMR12 |
MSR track 1 & 2 for the KS-7210 |
|
PFKSMR3-U |
MSR track 1, 2 & 3 for the KS-7210 |
|
|
Bracket |
PFWB6812 |
Wall mount Bracket |
|
CPU |
Intel Pine View D525 Dual Core 1.8Ghz CPU |
|
Memory |
DDR3 800 MHz, SO-DIMM socket x 1, max 4 GB, default 2 GB |
|
Storage |
In Australia Standard with 32 GB SSD in the Base stand, can also be purchased with a 320 GB SATA HDD (Special Order) |
|
LCD |
10″ Active Matrix LCD Display |
|
Resolution |
1024 x 768 |
|
Tilt |
20° to 90° |
|
Touch Panel |
5-wire Resistive |
|
Connectivity |
3 x RS-232 Ports (2 x DB9, 1 x 10 pin RJ45) with 5V Support |
|
4 x USB Ports |
|
|
10/100/1000Mb Ethernet Port |
|
|
1 Cash Drawer Port (Controls 2 drawers with optional Y-cable) |
|
|
CF Card slot for Type 1 memory card |
|
|
Audio |
Line out |
|
Power on wake up |
Through Alarm, LAN or Modem |
|
Power Supply |
External 12V DC Power Adapter, 50 W |
|
Operating Environment |
0 ~ +50 °C, 20 ~ 90% RH with SSD 0 ~ +40 °C, 20 ~ 90% RH with HDD |
|
Storage Environment |
-20 ~ +70 °C, 10 ~ 90% RH |
|
Size (W x D x H) |
260mm x 205mm x 266mm |
|
Weight |
3.2 Kg |
