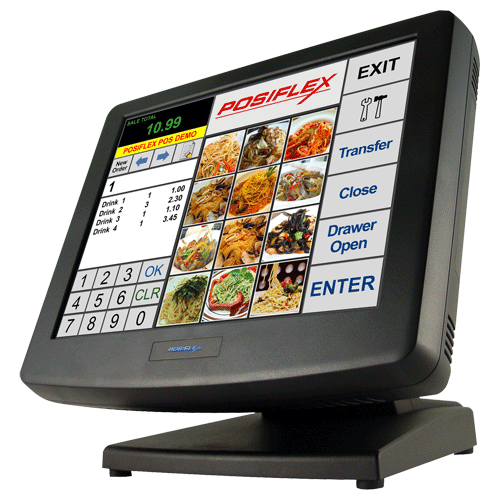

PC POS Touch System
-
Resistive or IR touch screen
-
15” LCD 1024 x 768 resolution
-
Spill-resistant design (IP44 capable) to prevent careless spill and provide easy cleaning for a wide range of applications
-
Equipped with Intel Sandy Bridge Pentium B950 2.1GHz CPU and DDR3 memory
-
Fan-free design boasting quiet and anti-dust features
-
Patented aluminium die-cast housing design for efficient cooling
-
UPS (Embedded on board developed by Posiflex) support to avoid sudden power loss (Optional Battery pack required).
-
Push-open cover to protect power switch from accidental shutdown
-
Bottom cable guide design and cover for safety and neat outlook
-
User-friendly mechanism for system upgrade and easy maintenance
-
Available with Bezel free front panel
-
Optional Shinny black front bezel for stunning look
-
Standard on Generation 6 super slim base stand
|
Pole Display |
PFPD310B-U |
2 Line 20 Character LCD Display mounted on the rear top of display for the KS series with USB Interface |
|
2 Line 20 Character VFD Pole Display for the KS7215 with USB Interface |
||
|
MSR |
MSR track 1, 2 & 3 (optional fingerprint sensor) for the KS-7215 |
|
|
MSR track 1, 2 & 3 (optional RFID and/or Wifi module)for the KS-7215 |
||
|
Keypad |
36-Key Dynakey with key lock attachment. Can also come with MSR |
|
|
2nd LCD Display |
15″ inch 2nd LCD Display for the KS-Series on 300mm Pole (Gen 5 Base) Standard Machine comes with Gen 6 Base |
|
|
15″ inch 2nd LCD Display to mount on back of the Main screen for the KS-Series |
||
|
15″ inch 2nd LCD Display for the KS-Series with mounting bracket to the base (Gen 6 Base) of main unit. |
||
|
12″ inch 2nd LCD Display for the KS-Series with GEN 6 Base |
||
|
UPS Battery |
Rechargeable UPS Battery |
|
|
Cables |
RJ45 to DB9 Converter Cable |
|
|
Optional Parallel Cable |
||
|
Cable to be able to fire 24V Cash Drawers |
||
|
Wall mount Bracket |
Wall mount bracket with VESA mount |
|
CPU |
Intel Sandy Bridge Pentium B950 2.1 GHz CPU / 2M Cache |
|
Memory |
DDR3 1066 MHz, SO-DIMM socket x 2, max 8 GB, default 2GB |
|
Storage |
We stock Standard 32GB SSD Also available with higher spec SSD or 3.5 inch 320GB Hard Disk Drive CF Kit is also an option. |
|
OS Support |
WIN 7, Windows XP Pro, POSReady 7, POSReady 2009 |
|
LCD |
15″ TFT LCD Display |
|
Tilt Adjustment |
From 15° to 70° |
|
Brightness |
250 nits |
|
Resolution |
1024 x 768 |
|
Touch Panel |
Normal Bezel: 5-wire Resistive (USB I/F) or optional IR Touch (USB I/F) Bezel Free: Resistive (USB I/F) or optional PC Multi Touch (USB I/F) |
|
Connectivity |
4 RS-232 Ports (3 x DB9, 1 x RJ45) with 5V/12V support |
|
Optional: 1 Parallel Port (needs Proprietary Cable) |
|
|
7 USB Ports (6 on I/O Panel and 1 on the side) 1 Proprietary USB port for side mount optional devices Optional Powered USB (1 x 24V), needs Gen 5.5 Base and 150W Power adapter upgrade |
|
|
VGA Port for 2nd Display (D-Sub with 12V Power for Posiflex LCD Monitors) |
|
|
1 Cash Drawer Port (Controls 2 drawers with optional Y-cable) |
|
|
10/100/1000Mb Ethernet Port |
|
|
UPS Port (Battery Optional) |
|
|
Power on wake up |
Through Alarm, LAN or Modem |
|
Operating condition |
SSD: 0°~50°C, 20~90% Relative Humidity HDD: 0°~40°C, 20~90% Relative Humidity |
|
Storage condition |
-20°~50°C, 10~90% Relative Humidity |
|
Sound |
2W Speaker x 2, Line out |
|
Size (W x D x H) |
378mm x 312mm x 340mm |
|
Weight |
9.25 Kg |
