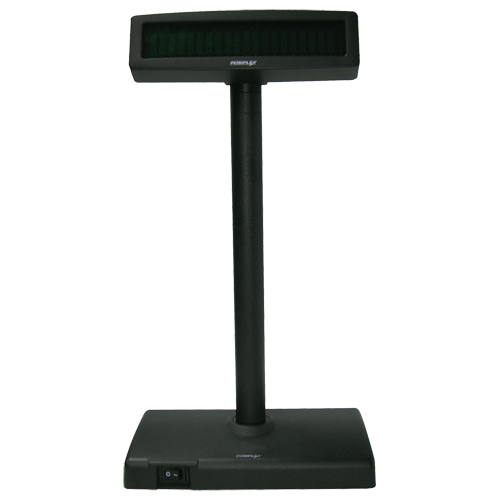

Vacuum Fluorescent Display with display 20 columns and 2 lines
-
Blue or green fluorescent colour is easy on the eyes.
-
The display panel is movable so that it can be adjusted for the best viewing angle.
-
Rotates 270º
-
Adjustable height.
-
USB or RS232 interface
-
Supports 12 code pages
-
The user-defined and international character sets are standard.
?
|
Display Type |
Vacuum Fluorescent Display |
|
Display pattern |
5 x 7 Dot Matrix |
|
Brightness |
350 cd/m² |
|
Viewing Angle |
15, 30 and 45° |
|
Horizontal rotating Angle |
Max. 270° |
|
Font Size |
5.25(W) x 9.03(H) mm |
|
Character Number |
20 x 2 for 5 x 7 font |
|
Character |
12 code pages of 128 characters each |
|
Interface |
RS-232 or USB interface |
|
Operating Temperature |
0 ~ 40 ºC |
|
Operating Humidity |
10 ~ 90% |
|
Dimension (Panel) |
196.6 x 57.5 x 39.5 mm |
|
Dimension |
410 mm (H) |
|
Dimension |
220 mm (W) x 110 mm (D) x 27 mm (H) |
|
Weight |
0.8 Kg |
