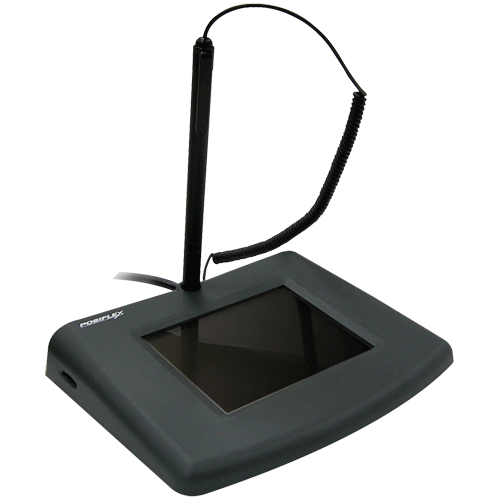

Signature Capture Pad
-
ITO resistive touch pad over 3.8″ FSTN LCD
-
Display area 3″ (Width) x 2.3″ (Height) with resolution 320 x 240
-
Adjustable LCD backlight contrast
-
Touch Resolution 500dpi and Data Conversion Rate 540 pps
-
Low power consumption
-
Provides smooth bitmap and resolution for signature verification
-
Simultaneous view of electronic signature on LCD pad
?
|
Stylus |
PF38116001013 |
Stylus with Tether |
|
Display |
3.8″ FSTN LCD Panel with Backlight |
|
Resolution |
320 x 240 |
|
Touch Panel |
ITO resistive transparent touch pad |
|
Touch Resolution |
500 Dpi |
|
Interface |
USB 1.1 |
|
OS Support |
Windows 98SE, 2000, XP |
|
SDK Support |
VB & Visual C++ |
|
Output Format |
BMP |
|
Power Source |
5 VDC from USB Port |
|
Max. Current |
70 mA |
|
Operating Temperature |
0 ~ 45 ºC |
|
Storage Temperature |
-20 ~ 60 ºC |
|
Relative Humidity |
5% ~ 85% non condensing |
|
Dimensions W x D x H |
150 x 122 x 26 mm |
|
Weight |
370 g (cable not included) |
|
EMC/Safety Standards |
FCC Class A, CE, C-tick |
