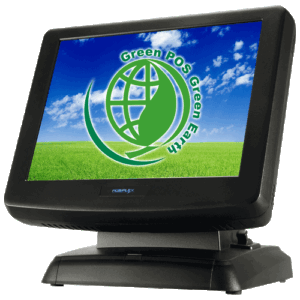

PC POS Touch System
-
Standard with Intel T3100cDual Core® 1.9 GHz CPU
-
15″ LCD Display with 5-wire Resistive Touch Screen
-
Spill resistant architecture
-
80 Gb Hard Disk or larger
-
1 Gb RAM expandable to 2Gb
-
Powered Serial ports, Parallel Printer port
-
Easily wall or Pole mountable with optional bracket
-
Optional MSR, 2 Line Pole Display, 2nd LCD Display, UPS Battery and RAID function
?
|
Pole Display |
PFPD310B-U |
2 Line 20 Character LCD Display mounted on the rear top of display for the KS series with USB Interface |
|
PFPD2602B-R |
2 Line 20 Character VFD Pole Display for the KS Series with RS232 Interface with mounting bracket |
|
|
MSR |
PFSD400TB12-U |
MSR track 1 & 2 for the KS-73xx Series |
|
PFSD400TB3-U |
MSR track 1, 2 & 3 for the KS-73xx series |
|
|
PFSD800B12xx-U |
MSR track 1 & 2 module which could also house optional RFID and/or Wifi Module |
|
|
2nd LCD Display |
PFLM6501B |
15″ inch 2nd LCD Display for the KS-Series |
|
PFLM6101B |
12″ inch 2nd LCD Display for the KS-Series |
|
|
Wall mount Bracket |
PFWB6000VB |
Wall mount bracket with VESA mount |
|
UPS Battery |
PFRB2000 |
Rechargeable UPS Battery |
|
CPU |
Dual Core® M 1.9 GHz (1 Mb Cache) CPU or Core 2 Duo® 2.26 GHz (3 Mb Cache) |
|
Memory |
1 Gb expandable to 2 Gb |
|
Storage |
Standard with 2.5 inch SATA Hard Disk Drive |
|
LCD |
15″ Active Matrix LCD Display |
|
Brightness |
250 nits |
|
Resolution |
1024 x 768 |
|
Touch Panel |
5-wire Resistive |
|
Tilt Adjustment |
15º ~ 70º |
|
Connectivity |
4 DB9 RS-232 Ports with 5V Power Supply Capability |
|
1 Parallel Port |
|
|
5 x USB Ports |
|
|
VGA Port for 2nd Display |
|
|
1 Cash Drawer Port (Controls 2 drawers with optional Y-cable) |
|
|
10/100/1000Mb Ethernet Port |
|
|
UPS Port for Optional 2.3Ahr battery in the Base |
|
|
Power on wake up |
Through Alarm, LAN or Modem |
|
Sound |
2W Speaker in the main unit (optional) |
|
Size (W x D x H) |
376mm x 321mm x 372mm (LCD @ 15º |
|
Weight |
10.3 Kg |
