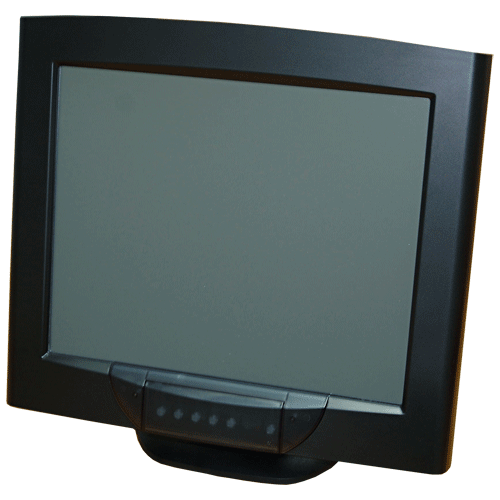

17″ Inch TFT LCD POS Monitor
-
High Brightness
-
ELO 5 Wire Resistive Touch Panel
-
RS232 Touch Interface
-
250 Nits (cd/m²
-
Very stable base, excellent for POS applications
?
|
MSR |
ITM123MSR |
MSR for ITM-Series with RSR232 Interface |
|
Viewing Area |
17″ TFT LCD |
|
Resolution |
1280 x 1024 |
|
Contrast Ratio |
400:1 |
|
Brightness |
250 cd/m² |
|
Display Colours |
16.7 million |
|
View Angle |
160º (H) / 135º (V) |
|
VGA Signal |
Analog RGB |
|
Controls |
Brightness, Contrast, H-Phase, V-Phase, size |
|
Touch Panel |
ELO Accutouch 5-wire resistive touch screen |
|
Touch Interface |
RS232 |
|
Power Supply |
External Power Adapter AC 100~240V, 50/60Hz, 2.5A |
|
Consumption (Max) |
25 W |
|
Operating Temperature |
0 ~ 40 ºC |
|
Operating Humidity |
10 ~ 90% |
|
External Dimensions (W x D x H) |
432 x 406 x 250 mm |
|
EMC/Safety Standards |
CE, FCCB, TUV/GS, ETL.ETLC |
