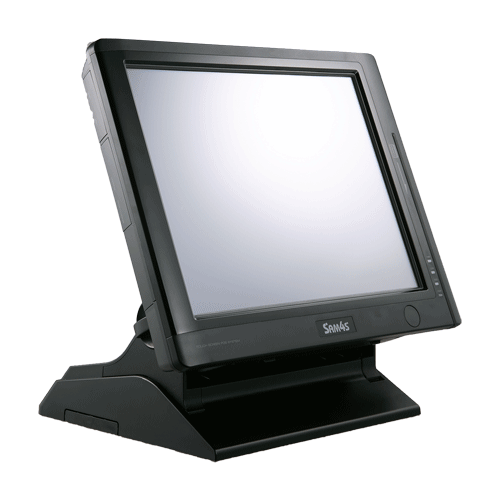

PC POS Touch System
-
15″ LCD Display with 5-wire Resistive Touch Screen
-
ATOM® D2550 Dual core 1.86 GHz
-
32 GB SSD
-
2 GB RAM expandable to 4Gb
-
Powered Serial ports
-
Standard with 3 Track MSR Built-in
-
Optional CF Slot
-
Optional 2 Line Pole Display or 2nd LCD Display, Wall mount bracket
|
Pole Display |
SPT3V202 |
2 Line 20 Character VFD Display mounted on the rear top of display |
|
SPT3L15 |
15″ inch 2nd LCD Display |
|
|
Dallas Key Set kit |
SPT3-DKT305 |
Dallas key interface with 5 keys |
|
Wall mount Bracket |
SPT3WM |
Wall mount bracket with VESA mount |
|
CPU |
ATOM® Dual core D2550 1.86 GHz CPU |
|
Memory |
2 GB expandable to 4 GB DDR3 (2 Slots) |
|
Storage |
Standard with 32GB SSD Optional CF card reader integrated (special Order) |
|
LCD |
15″ Active Matrix LCD Display |
|
Brightness |
250 nits |
|
Resolution |
1024 x 768 |
|
Touch Panel |
5-wire Resistive |
|
Connectivity |
5 RS-232 Ports Powered 5V/12V BIOS Selectable (3 x DB9 and 2 x RJ45) |
|
1 Parallel Port |
|
|
6 USB Ports |
|
|
VGA Port for 2nd Display |
|
|
1 Cash Drawer Port option |
|
|
10/100/1000Mb Ethernet Port |
|
|
Power |
External power supply Input AC 100~240V/50-60Hz, Output DC12V/5A 60W |
|
Size (W x D x H) |
387mm x 278mm x 340mm |
|
Weight |
6.0 Kg |
|
Certifications |
CE, FCC, MIC, CB, cTUVus, RoHS, WEEE |
