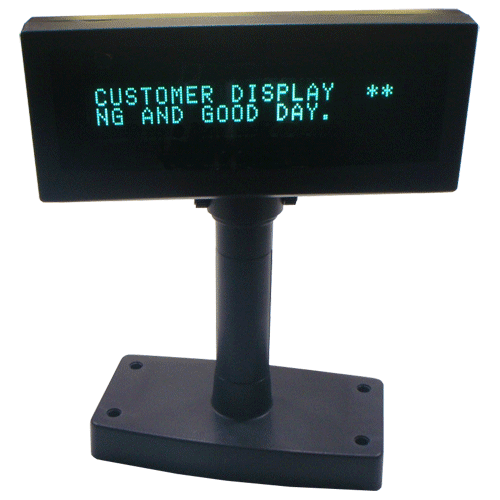

Vacuum Fluorescent Display with display 20 columns and 2 lines
-
Blue-green fluorescent colour is easy on the eyes.
-
The display panel is movable so that it can be adjusted for the best viewing angle.
-
Adjustable height.
-
The interface is RS232, with baud rates from 4,800 up to 38,4000 bps.
-
Pass through function to reduce cable connections.
-
The self-test function checks the circuit board and performs each function for diagnostic purposes.
-
The user-defined and international character sets are standard.
?
|
Display Type |
Blue Green Vacuum Fluorescent Display |
|
Display pattern |
5 x 7 Dot Matrix |
|
Brightness |
350~700 cd/m² |
|
Viewing Angle |
Max. 45° |
|
Horizontal rotating Angle |
Max. 340° |
|
Font Size |
5.5(W) x 9 (H) mm |
|
Dot Size |
0.86 x 1.2 mm |
|
Character Number |
20 x 2 for 5 x 7 font |
|
Character |
95 Alphanumeric & 32 International Characters |
|
Command |
ICD-2002, EPSON POS D101, Aedex, UTC/S, UTC/P, ADM788, DSP800, CD5220 |
|
Language |
USA, France, Germany, U.K., Sweden, Denmark I & II, Italy, Spain, Norway, Japan (Katakana), Slavonic, Russian |
|
Interface |
RS-232 interface |
|
Pass Through Function |
Pass-through function is standard |
|
Operating Temperature |
0 ~ 40 ºC |
|
Operating Humidity |
10 ~ 90% |
|
Dimension (Panel) |
225 x 50 x 92 mm |
|
Dimension |
(382/298/160/74) mm (H) x 33 mm (Ø) |
|
Dimension |
190 mm (W) x 96 mm (D) x 27 mm (H) |
|
Weight |
0.8 Kg |
