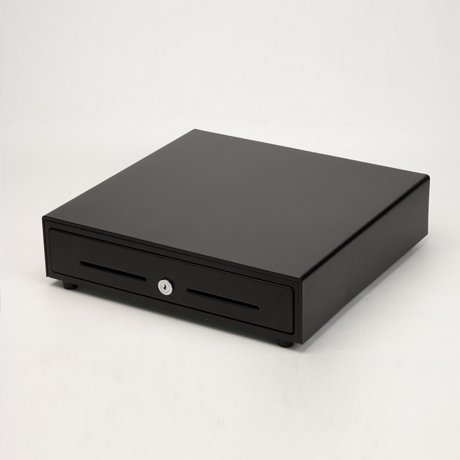

Sam4s H Cash Drawer

Customised Solution, Support and Installation

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

  •  Ivory/Dark gray color
  • Cabinet with high technology steel
  • 12V and 24V selectable or COMBO
  • Roller type of tray sliding
  •  4B8C / 5B5C is available



MODEL NAME

H-DRAWER

Color

Ivory/Dark Gray

Dimension

Width(mm)

420

Depth(mm)

400

Height(mm)

112

Housing

Steel

Bottom

Steel

Tray

Till Material

Steel

Sliding Type

Plastics-Roller

Media Slot

2 Slot

Height : 10mm

Lock Key

1) 3-Position(4 Function)
   ①On-Line ②Closed
   ③Locked Open ④Manual Open

1PCS lock key only

Bill Coin

Bill Till Size
(mm)

Width

72(5B5C)/ 90(4B8C)

Depth

180

Height

54

Coin Till Size
(mm)

Width

71(4B8C)/ 87(5B5C)

Depth

95(4B8C)/ 46(5B5C)

Height

48(4B8C)/ 4(5B5C)

Coin Box Separation

YES(4B8C Only)

Coin Partition Separation

YES

Bill Partition Separation

YES

Lever Press

Standard

Plastic

Option

Steel

Lock Unit

Compulsory



Available(Default)

Latch



2 Latch

Interface

Consumption



RJ-11

Locking Lid

With Drawer



Yes

Power Input
(Solenoid)

With Drawer



12V/24V Selectable(or COMBO)

Life

Type



1,000,000 cycle

Weight(kg)

Port



6.7
