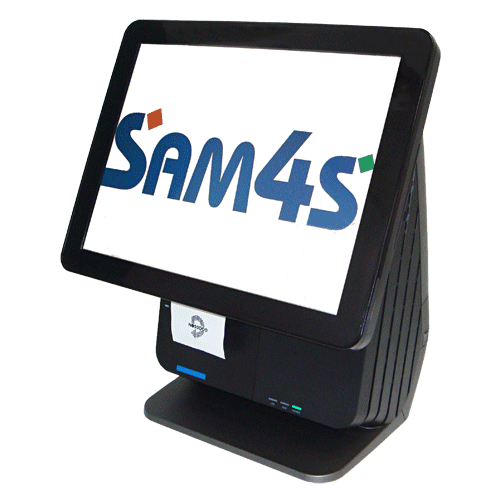

PC POS Touch System
-
15″ LCD Display with 5-wire Resistive Touch Screen
-
ATOM® Dual Core D2550 1.86 Ghz CPU
-
32 GB SSD or Optional Higher
-
2 GB DDR3 RAM expandable to 4 GB
-
Built in 80 mm Printer
-
Factory Option: CF Slot
-
Option: MSR, Integrated Presentation Scanner, 2 Line VFD, Customer LCD Display
|
Customer Display |
SPT7V202 |
2 Line 20 Character VFD Display mounted on the rear top of display |
|
SPT7L15 |
15″ inch 2nd LCD Display |
|
|
MSR |
SPT7MSR |
Dallas key interface with 5 keys |
|
Built In Scanner |
SPT7SCN |
Integrated omni-directional Scanner Kit |
|
CPU |
ATOM® Dual core D2550 1.86 GHz CPU |
|
Memory |
2 GB expandable to 4 GB DDR3 (2 Slots) |
|
Storage |
Standard with 32GB SSD (Australia) Optional CF card reader integrated (special Order) |
|
LCD |
15″ Active Matrix LCD Display, Bezel Free |
|
Brightness |
250 nits |
|
Resolution |
1024 x 768 |
|
Touch Panel |
5-wire Resistive |
|
Printer |
Integrated 220 mm/Sec Thermal Printer |
|
Connectivity |
4 RS-232 Ports Powered 5V/12V BIOS Selectable (3 x DB9 and 1 x RJ45) |
|
1 Parallel Port |
|
|
6 USB Ports |
|
|
VGA Port for 2nd Display |
|
|
1 Cash Drawer Port option |
|
|
10/100/1000Mb Ethernet Port |
|
|
Power |
External power supply Input AC 100~240V/50-60Hz, Output DC12V/5A 60W Input AC 100~240V/50-60Hz, Output DC24V/2.5A 60W |
|
Size (W x D x H) |
387mm x 278mm x 340mm |
|
Weight |
6.0 Kg |
|
Certifications |
CE, FCC, MIC, CB, cTUVus, RoHS, WEEE |
