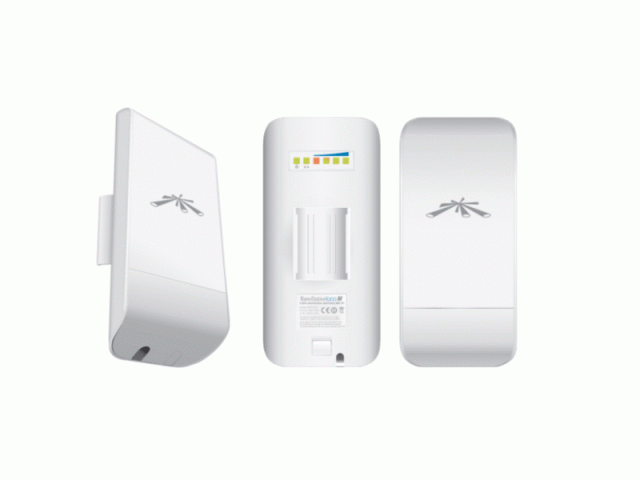

Ubiquiti NanoStation LocoM2 802.11n/g 200mW 8dBi Dual Polarity AP/Bridge
Performance Breakthrough
150+ Mbps real outdoor throughput and up to 1km+ range. Featuring 2×2 MIMO technology, the new Ubiquiti NanoStation links significantly faster and farther than ever before.
New Leading-Edge Industrial Design
The original NanoStation set the bar for the world’s first low-cost and efficiently designed outdoor broadband CPE. The new Ubiquiti NanoStation M and NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors.
Next-Gen Antenna Design
New Ubiquiti antenna array designs featuring 8dBi dual-polarity gain at 2.5GHz. Optimized cross-polarity isolation and in a compact form-factor.
AirOS V
Version 5 of Ubiquiti’s AirOS builds upon the market leading intuitive user-interface loaded with advanced wireless configurations and routing functionality.
Specifications
Operation mode AP, Client, WDS
Frequence 2400 – 2486 MHz
DHCP yes
Transmission speed up to 300 Mbps
Standards 802.11b/g/n
Chipset Atheros
Max.output power 23 dBm
Sensitivity -96 dBm
Modulation OFDM, DBPSK, DQPSK, CCK, 64QAM,16QAM
Encryption WEP, WPA, WPA2
Comformity FCC, CE
LAN port 1x RJ45 10/100 Mbps
Default IP 192.168.1.20
Default name ubnt
Default password ubnt
Power supply 24 V, 0,5 A
Operational temperature from -30°C up to +80°C
Dimension 163 x 31 x 80 mm
Weight 0,18 kg
Interface LAN, WiFI
Supported OS AirOS V
Gain 8 dBi
Polarization Linear – horizontal and vertical
Radiating angle – H 60°/60°
Radiating angle – V 60°/60°
Procesor MIPS 24KC, 400 MHz
RAM 32 MB
NAND 8 MB
